mcu-based embedded control system for liquid mixing station

Embedded control system for the Festo MPS® PA mixing station, replacing traditional PLCs with a cost-effective Arduino-based solution.

Developed in collaboration with another student from the BSc. in Mechatronics Engineering from Universidad Anáhuac México

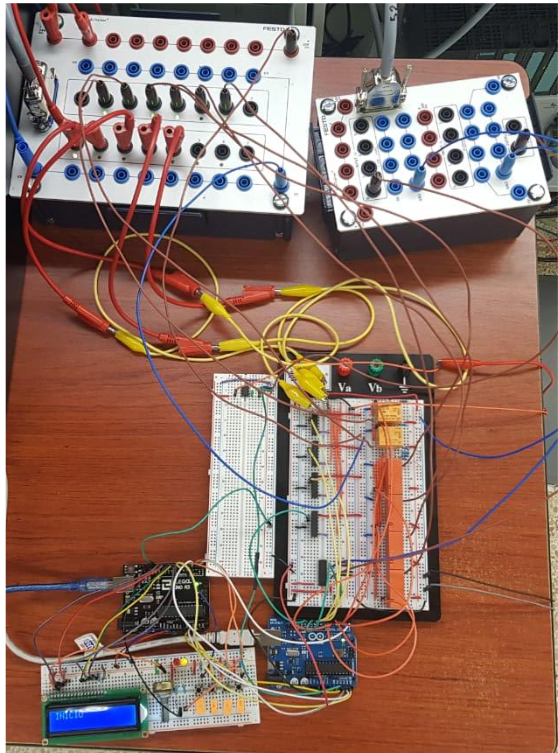

Prototype circuit for the final project of the Embedded Systems course as part of the Mechatronics Engineering Bachelor's degree.

Overview

The objective of this project was to design and implement an embedded control system for the Festo MPS® PA mixing station, replacing traditional PLCs with a cost-effective Arduino-based solution. Requirements included:

  • Control of dosing tanks, pumps, and valves for automatic liquid mixing.
  • User interaction via a Human-Machine Interface (HMI) to select recipes, volumes, and operation parameters.
  • Accurate flow and level measurement through capacitive sensors and flow detectors.
  • Step-response testing and validation through simulation and physical experiments .

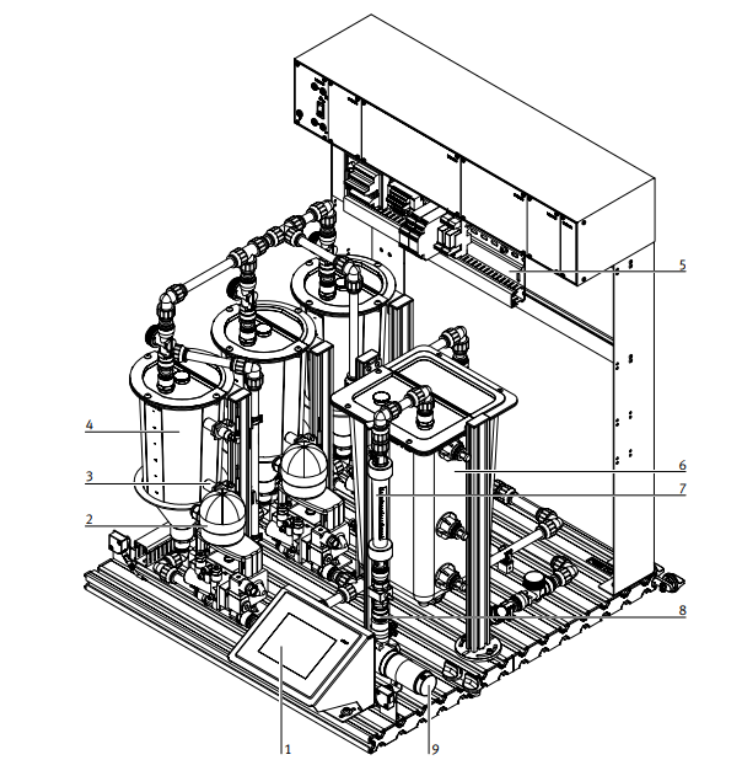

Festo MPS® PA academic liquid mixing station

System Description

The station consisted of three dosing tanks and one main mixing tank, controlled by pumps and two-way ball valves. Sensors included capacitive level detectors and a paddle-wheel flow detector with a frequency-to-voltage converter.

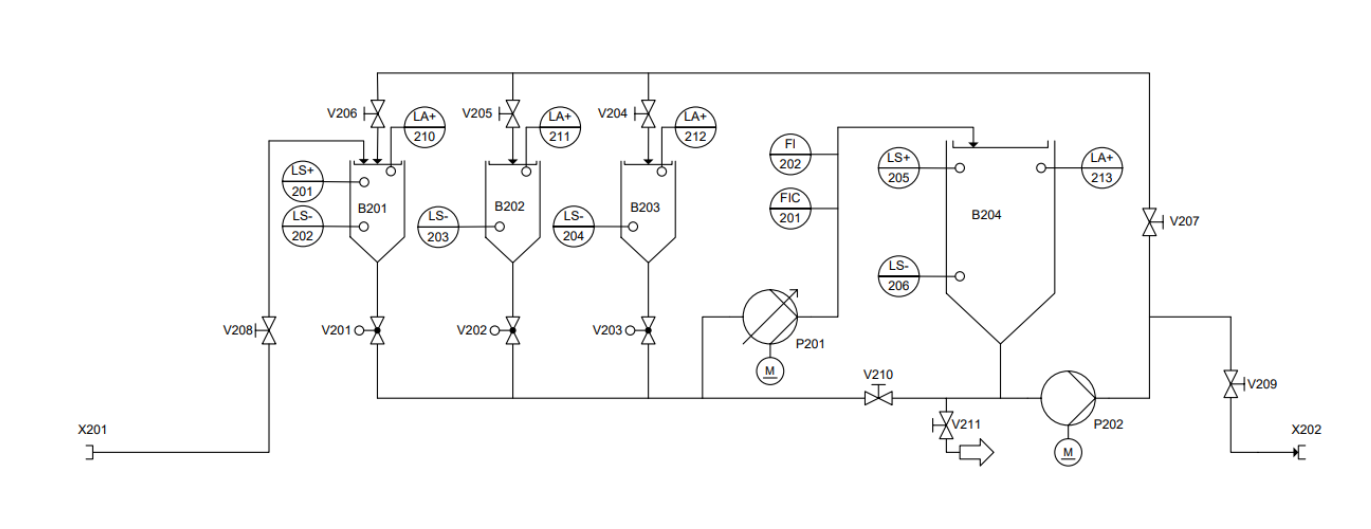

Festo MPS® PA station piping and instrumentation diagram

Control was implemented with an Arduino board programmed in C/C++, interfacing with the sensors and actuators via designed conditioning circuits. The Arduino acted as the embedded controller, handling real-time process logic, while the HMI allowed recipe selection and process monitoring .

Solution Design and Implementation

The implementation was divided into four parts, which are listed below.

1. HMI Controller (Arduino 1)

  • Implemented using a 16x2 LCD and 4 push-buttons (Enter, Return, +, –).
  • Allowed operator to input recipe, target volume, and pump voltage.
  • Displayed process state in real time (filling, mixing, recirculation, error conditions).
  • Communicated with the control Arduino via serial + parallel signaling.

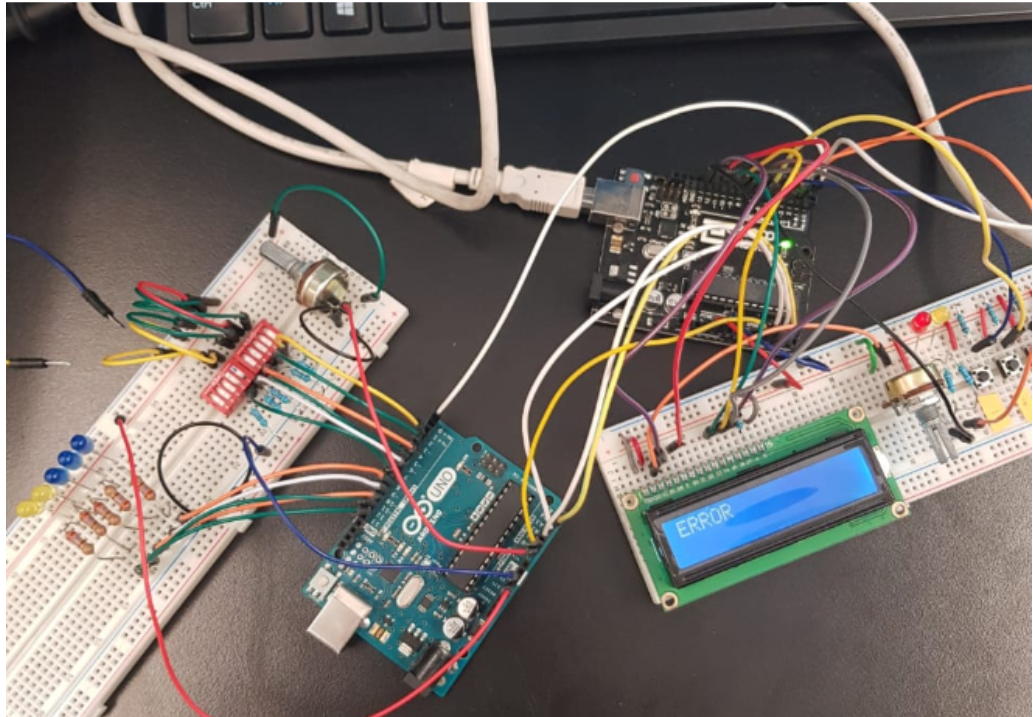

HMI integration prototype to test interaction.

2. Process Controller (Arduino 2)

  • Executed real-time process logic (sequence of filling, mixing, draining).
  • Received parameters from HMI Arduino and drove pumps/valves.
  • Implemented discrete On-Off control based on sensor feedback.
  • Generated PWM signals to regulate pump voltage.

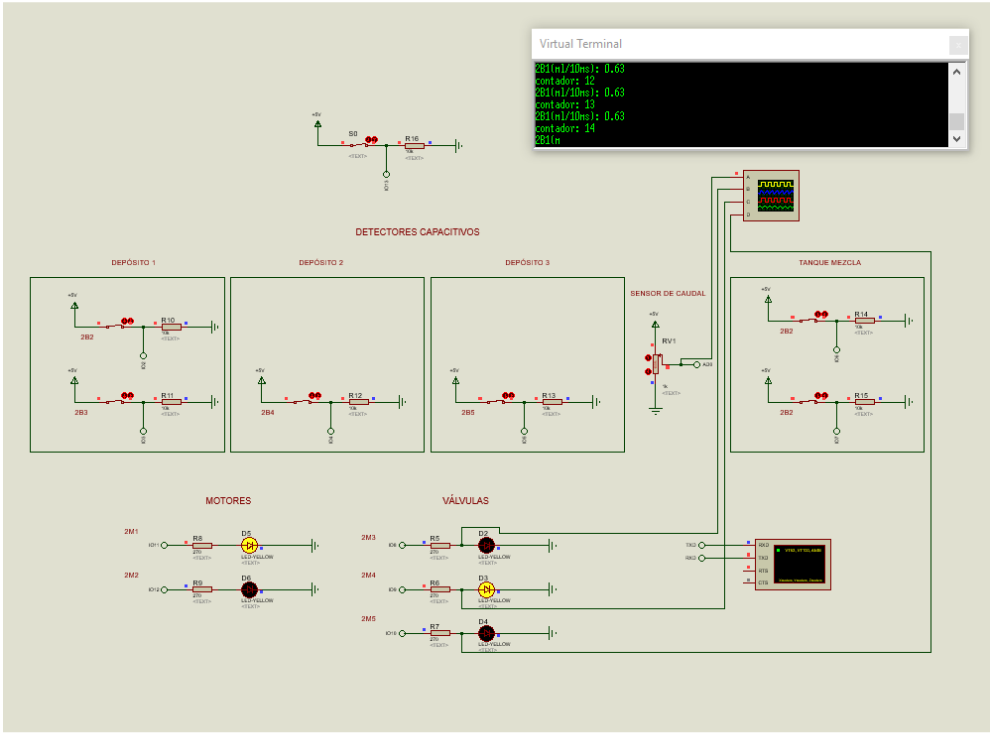

Proteus simulation of control circuit.

3. Measurement and Instrumentation

  • Capacitive sensors detected liquid levels (min/max thresholds).
  • Flowmeter + frequency-to-voltage converter provided continuous flow rate measurement.
  • Custom signal conditioning circuits (relay-based interfaces, op-amp buffers) adapted 24V sensor outputs to 5V inputs.
  • Calibration and step-response tests established accurate flow vs. voltage curves.

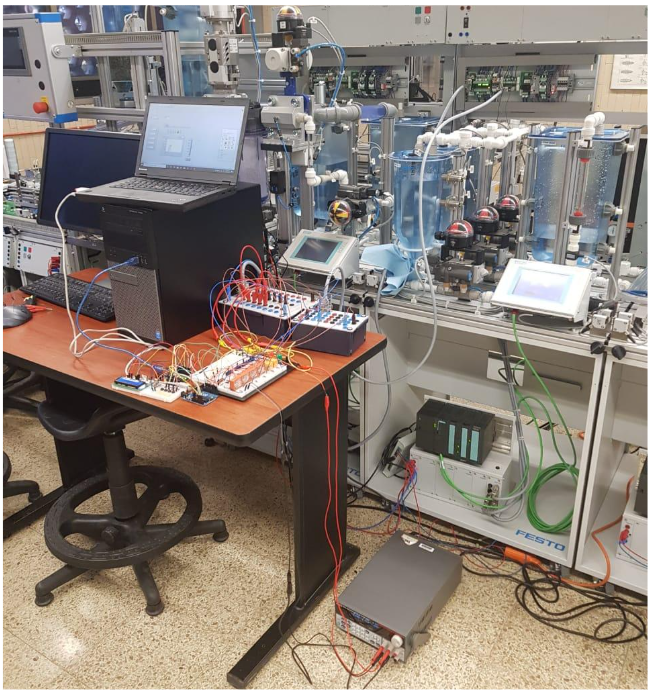

Integration of the two controllers to the system through interfaces.

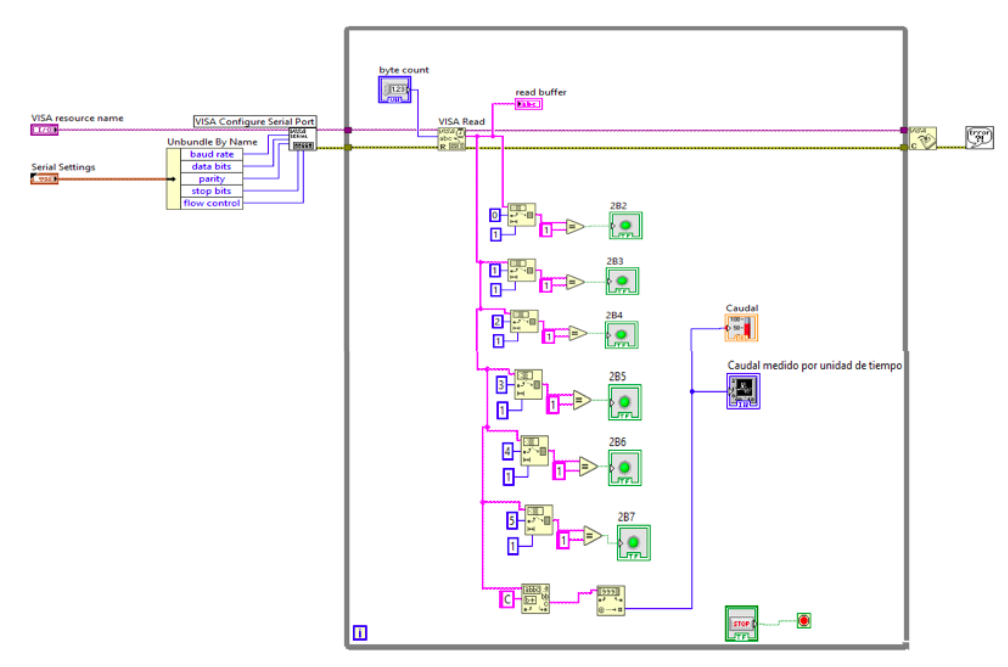

4. LabVIEW Dashboard

  • Designed a live monitoring panel in LabVIEW.
  • Displayed sensor states (capacitive level detection) and real-time flow data.
  • Included a graphical plot of flow vs. time for process analysis.
  • Interfaced with the control Arduino via serial communication for data acquisition.

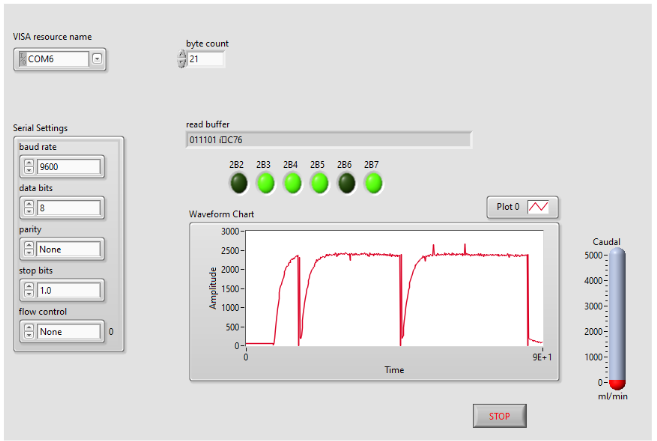

LabVIEW was used as a visual tool for the user (replacing the actual SCADA of the station).

Control Method

The dosing and mixing process was governed by a PI control strategy:

  • Proportional factor (P): Pump voltage (via PWM duty cycle) was tuned experimentally to achieve a flow response proportional to the set point requirements. This allowed adjustment of flow rate for different recipes.
  • Integral factor (I): The system continuously integrated flow sensor pulses into cumulative milliliters. Once the accumulated volume exceeded the recipe set point, the controller shut off the pump, ensuring accurate dosing without steady-state error.

Further improvements could be achieved by refining tuning or extending the algorithm to full PID for smoother transient behavior.

Code

The code can be found in this GitHub repository.

Results

  • Functional automatic mixing with three predefined recipes.
  • HMI Arduino successfully controlled parameters and guided the operator.
  • Correct operation of all sensors and actuators was verified.
  • LabVIEW dashboard provided real-time visibility of process variables.
  • System demonstrated feasibility of replacing PLCs with embedded controllers in small-scale or didactic setups.

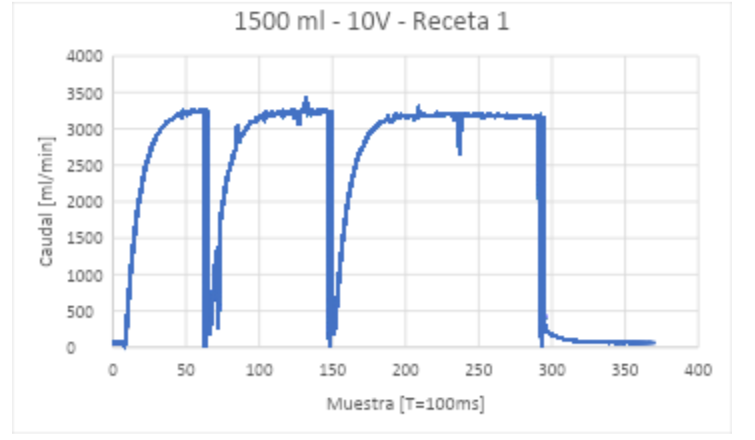

Plots of measurements during the execution of a recipe.

Next Steps

  • Implement PID control for smoother liquid dosing.
  • Improve sensor fusion and calibration to reduce error.
  • Replace dual-Arduino setup with a single higher-performance microcontroller, such as STM32 or Renesas (Eg. Cortex M4).
  • Integrate communication protocols (e.g., Modbus, Ethernet) for industrial scalability, and possibly integrate with SCADA system.
  • Enhance LabVIEW dashboard with historical logging and alarms.
